Long Range Coastal Radar Surveillance System

Name: Long Range Coastal Radar Surveillance System
Brand: JOHO
Price: 1 USD

Long Range Coastal Radar Surveillance System Manufactures

Brand Name : JOHO

Model Number : LRASR

Certification : ISO9001:2000

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100Sets/year

Delivery Time : 3months after received payment

Packaging Details : Customized Packing

Band : Meter-band

Radar System : Non-coherent pulse compression

Frequency : 180MHz~210MHz (meter wave)

Beam width : horizontal 5°, vertical 30°

Detection probability : P≥95%

Mean time between false alarm : ≥30min

MTBF : ≥1500h

MTTR : ≤30min (on-site)

Standard : GJB

Contact Now

Long Range Air Target Surveillance Meter-band Radar Surveillance System

Air Surveillance Radar System

Description

Naval long range air surveillance radar operates in the meter-band.Capable of long range detection of air targets(fighter,bomber) and medium range detection of stealth air targets for early-warning.

Features

Non-coherent pulse compression (NCPC) system
Moving target automatically detection
Long range air surveillance

Application

Search air targets (fighter, bomber and stealth aircraft) in battle sea
Providing long distance early-warning for ship formation

Technical Specification
System

Band: meter-band
Beam width: 5° (H), 30° (V)
Scan coverage: 360°×30°
Range: 350km against 4m2 RCS target;
100km against 0.1m2 RCS Stealth aircraft
Accuracy: range error ≤200m, angle error ≤1°

Processing capacity

Multiple tracking: ≥ 20pcs

Antenna

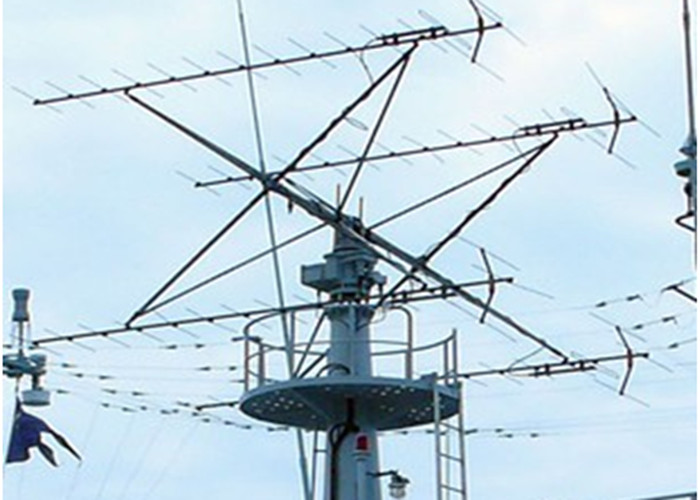

Antenna : Yagi-Uda array
Rotation speed: 6RPM

Transmitter / Receiver

Frequency: meter-band
NF: <6dB

Power Supply

AC: 220VAC (150~250 VAC)
Power consumption: 25kW
