Name: Ruggedized EO IR Tracking Gimbal For Unmanned Combat Vehicle JHS209S80
Brand: JOHO
Price: 1 USD

Brand Name : JOHO

Model Number : JHS209-S80

Certification : ISO9001:2000

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C,, Western Union, MoneyGram

Supply Ability : 50Sets/Year

Delivery Time : negotiation

Packaging Details : Standard Safety Equipment Case

Technology : IR Camera, CCD Camera, Laser Range Finder

Style : Gimbal

Pixel : 640x512

Zoom : 30× optical zoom

Focal Length : 75mm

Feature : waterproof, weatherproof,high definition

Spectral Band : 8μm~14μm

Wavelength : 1.5μm

Accuracy : ≤±5m

Range : 30m-2.5lm (visiblity 10km,vehicle target)

Contact Now

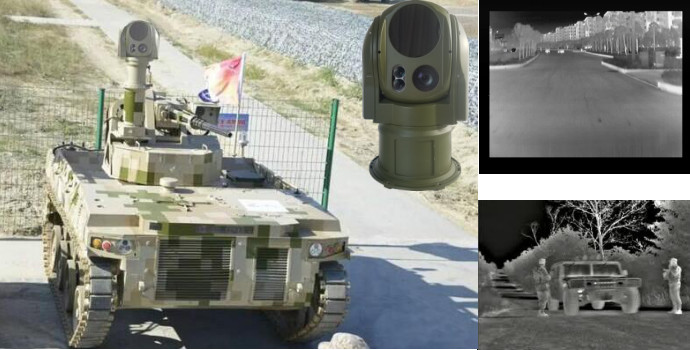

Ruggedized EO/IR Tracking Gimbal JHS209-S80

Ideal for: Unmanned Combat Vehicle

Features

Multi-sensor imaging/lasing payload for option (thermal camera, HD daylight camera, eye-safe laser range finder)
2-axis gyro stabilized gimbal and built-in vibration isolator protects internal payload components and minimizes vibration-induced boresight shifts
Advanced image processing (multiple targets recognition and stably tracking 1 target at high accuracy)
Ruggedized design, qualified to MIL standards for all-weather and long-life operation

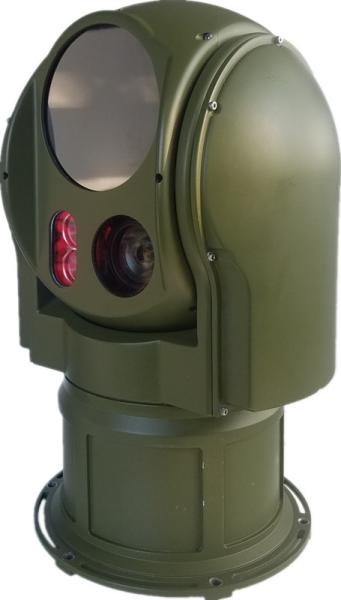

Ruggedized EO / IR Tracking Gimbal For Unmanned Combat Vehicle JHS209-S80

Technical Specification

THERMAL CAMERA
Detector	Uncooled FPA
Pixel	640*512
Spectral band	8μm~14μm
Pixel	17mm x 17mm
Focal length	75mm
DAY LIGHT CAMERA
Detector	1/2.8" CMOS
Focal length	4.3~129mm, 30x
Resolution	1920×1080
LASER RANGE FINDER
Wavelength	1.06μm
Ranging	300m~5km (visibility 10km, 3m*3m target)
Measurement accuracy	≤ ± 5m
SERVO
Stabilization accuracy	≤0.5mrad(1σ)
Turret direction range	azimuth:360° continuous; elevation:＋60°～－60°
TURRET MAXIMUM ANGLE SPEED
Azimuth	≥30°/s
Pitch	≥30°/s
ENVIRONMENTAL
Operating temperature range	-20℃ ~ +40℃
Storage temperature range	-30℃ ~ +50℃
Tracking
Tracking speed	≥2.5FOV/S
Min tracking contrast ratio	5%
Dynamic tracking accuracy	superior to 1mrad
POWER
Power Supply	DC 24V
PHYSICAL
Dimension Turret	≤ Φ220× 400mm
Turret Weight	≤ 10kg

Ruggedized EO / IR Tracking Gimbal For Unmanned Combat Vehicle JHS209-S80
