MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens

Name: MCT Detector Thermal Security Camera 640x512 Pixel And 15300mm Continuous Zoom Lens
Brand: JOHO
Price: 1 USD

MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens Manufactures

Brand Name : JOHO

Model Number : JH640-300

Certification : ISO9001:2000

Place of Origin : Wuhan China

MOQ : 1 set

Price : negotiable

Supply Ability : 100 set/ year

Delivery Time : negotiable

Packaging Details : Standard Safety Equipment Case

Technology : Infrared

Style : Thermal Imaging Camera

Detector : MWIR Cooled MCT

Pixel : 640x512

Lens : 15-300mm Continuous Zoom

FOV : 1.83°(H) ×1.46°(V)~35.4°×28.7°(V)

NETD : ≤20mK@25℃

Weight : ≤2.6kg

Detection range : 3.5km human, 7km vehicle

Application : Gimbal, EOTS, EOSS integration for long range surveillance

Contact Now

MCT Detector Thermal Security Camera 640x512 Pixel And 15~300mm Continuous Zoom Lens

JH640-300 thermal security camera is a matured and high reliable product developed by our company independently to meet military standard.It utilizes high-quality material and top-end manufacture technology.The thermal camera is featured by small size, high sensitivity, easy to control, long surveillance range, all weather operations and easy for integration.It adopts high sensitivity MWIR detector and 640x512 resolution for crispy image.In addition, continuous zoom lens 15~300mm can distinguish the human, vehicle and ships at long range.

TECHNICAL SPECIFICATION

Detector
Detector Model	SCORPIO	LEO
Detector Type	MCT
Spectral band	3.7μm~4.8μm
Pixel	640×512
Pitch	15μm
NETD	≤20mK@25℃		≤25mK@25℃
Lens
Focus length	15mm~300mm continuous zoom
F#	4
FOV	1.83°(H) ×1.46°(V)~35.4°×28.7°(V)
Function and Interface
Frame frequency	50Hz (optional 100Hz)
Cooling time	≤8min@room temperature
Analog video	PAL
Digital video	LVDS
Communication & Control	RS232/RS422
Polarity	WH/BH
E-zoom	×2,×4
Power supply	DC24~32V
Power consumption	≤15W @ 25℃ steady work ≤30W @ 25℃ peak power
Environmental specs
Operation temperature	-32℃~+55℃
Storage temperature	-40℃~+70℃
Physical specs
Weight	≤2.6kg
Mechanical drawing	Refer to mechanical drawing

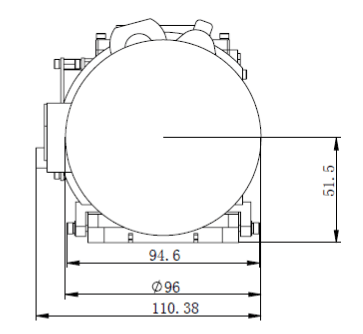

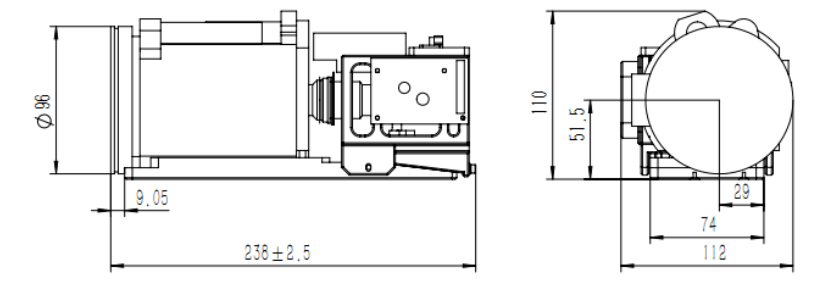

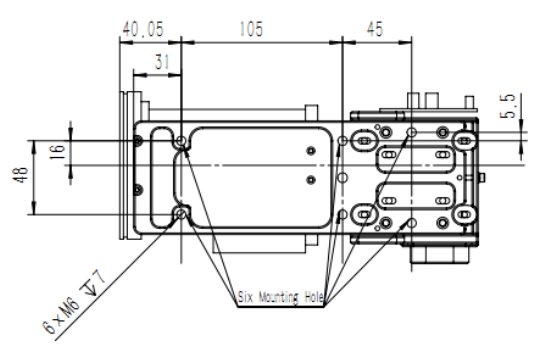

Mechanical Drawing (SCORPIO detector)

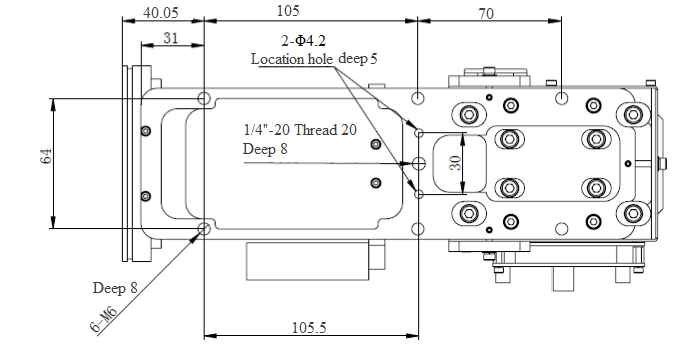

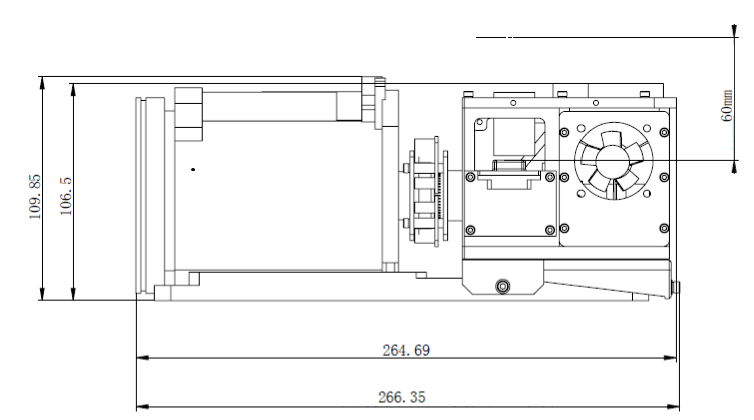

Mechanical Drawing (LEO detector)
