2× Real - time Electronic Zoom Uncooled Vox FPA Thermal Imaging Camera for Body Temperature Measurement

Name: 2 Real time Electronic Zoom Uncooled Vox FPA Thermal Imaging Camera for Body Temperature Measurement
Brand: JOHO
Price: 1 USD

2× Real - time Electronic Zoom Uncooled Vox FPA Thermal Imaging Camera for Body Temperature Measurement Manufactures

Brand Name : JOHO

Model Number : JH513-B

Certification : ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 5000PCS/Year

Detector : Uncooled Vox FPA

Pixel size : 17um

Bad pixel : <0.05%

FOV : 24°×19°

Resolution : 1920(H)×1080(V)

Focal length : 4.7mm-94mm continuous zoom

Size : progressive scanning 1/2.8"CMOS

Displayed temperature range : (30~50.0)ºC

Dimension : 125(L)×95(W) ×160(H)mm

Contact Now

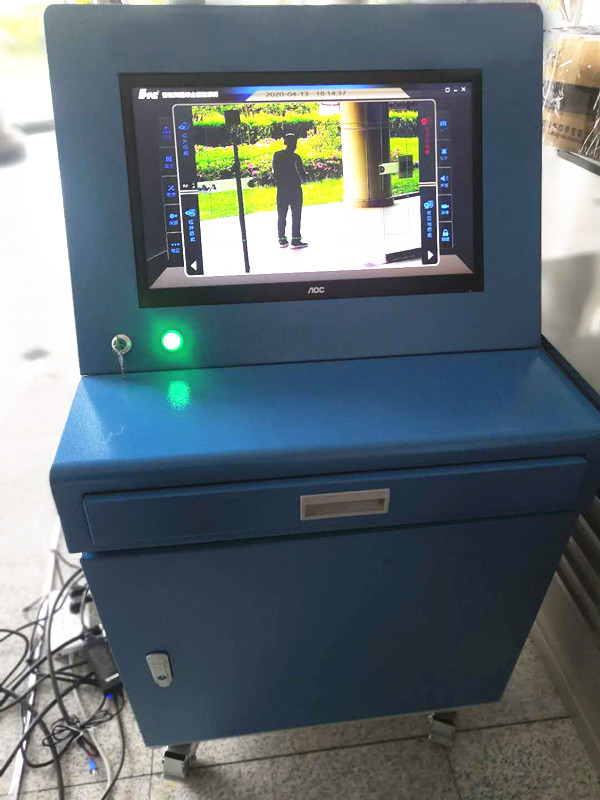

JH513-B Online IR Human Temperature Checking System

JH513-B is a new innovation in medical treatment, diagnosis the diabetes, arthritis, breast cancer etc just by scanning and do not radiate hazardous substance to human. High accuracy, powerful function and professional analysis software, JH513-B reports doctor professional inspection result. It also has been successfully integrated into new generation thermal texture maps system for breast diagnosis, head &face, thyroid, Chest & abdomen, back, lower forelimb /lower hind-limb, Left & Right Lateral, pelvic diagnosis.

FEATURES

Ethernet remote transmission and control
2× real-time electronic zoom
Auto shutter compensation
Super low power consumption
Professional and user-friendly analysis software
Review the saved image and make analysis of spot, line, area. Generate professional inspection report

TECHNICAL SPECIFICATIONS

Detector
Detector type	Uncooled FPA VOx
Response spectral	7.5~13.5μm
Pixel	320×240 (optional 640×480)
Pitch	17μm×17μm
Image Performance
Lens	28.6mm (F/1.2)
Focusing	Motorized
NETD	50mK@30ºC
Frame rate	25Hz/30Hz
Image Presentation
Palette	10 (Medical, Grey, Iron, Iron 10, Gradient, Midyellow, Midgreen, Rainbow, Midgray, Inverted gray)
Zoom	2x digital zoom
Measurement
Temperature range	0ºC~+60ºC (able to be cusomized)
Alarming Temp. Range	25ºC~45ºC(able to be cusomized)
Temperature accuracy	±0.5ºC

Storage
Storage medium	PC
Image/ Video Format	BMP/IRM
Ambient Parameters
Operation temperature	-20ºC~+60ºC
Storage temperature	-20ºC~+60ºC
Interface
Customized interface	Ethernet
Physical Parameters
Dimension	125(L)×95(W) ×160(H)mm
Weight	1.2Kg
Color	Black
